The Macro

The Macro was designed as a full-sized version of the Micro. I like the Micro's sleek design, but because of it's diminutive size, it does not suit everybody. Another goal with this guitar was to have a full-size instrument that would retain the weight of the smaller Micro guitar (under 6 lbs.).

Basic model

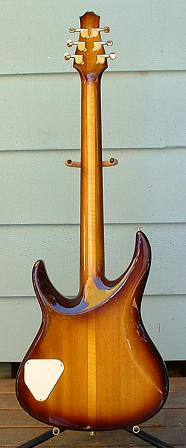

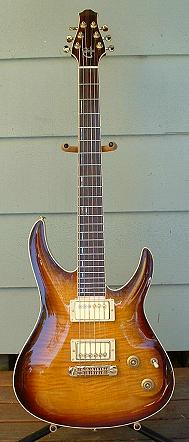

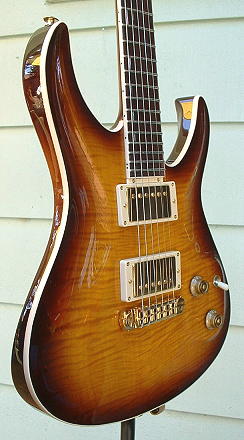

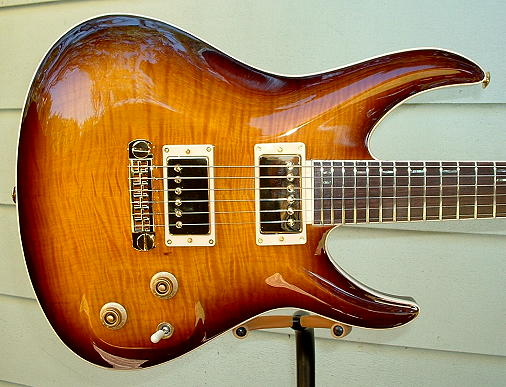

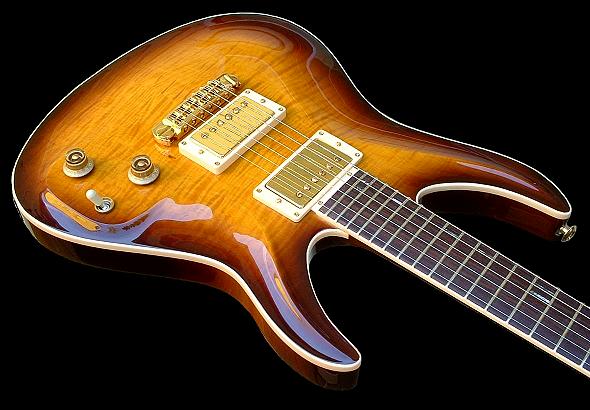

Macro - "light" Rich Amber burst
The main constructional difference between the Macro and the Standard apart from it's obvious difference in design, is that the Macro is a neck-thru and the Standard is a set-neck. This gives the guitar a slightly different sound character.

The Macro shown here is build with a lightweight Philippine Mahogany body and neck with graphite reinforcements and a curly Maple top. It has a dark Indian Rosewood fingerboard and head veneer. Pickups are Kent Armstrong Humbuckers, and I've used a TonePros wrap-around bridge.

Click on thumbnails for enlargements !!

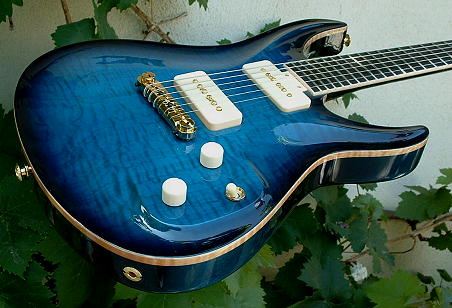

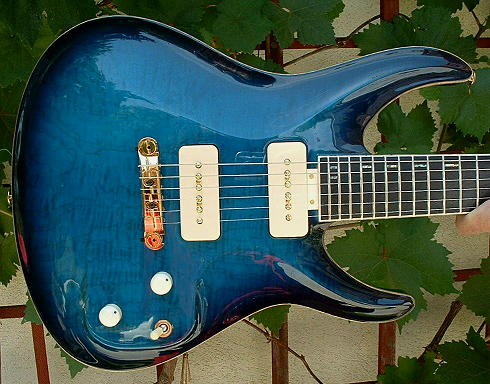

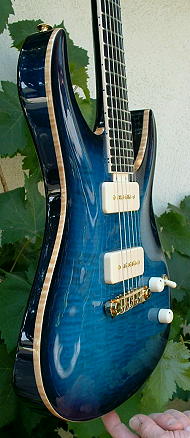

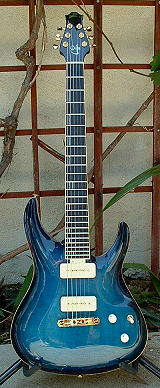

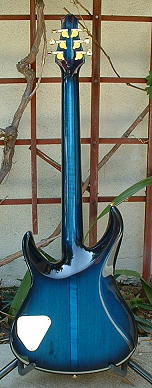

Macro Blueburst

This guitar came out looking rather nice with a blueburst over a tight curly Maple top. This is a regular Macro with a Honduras Mahogany body and neck and a dark South American Rosewood fingerboard.

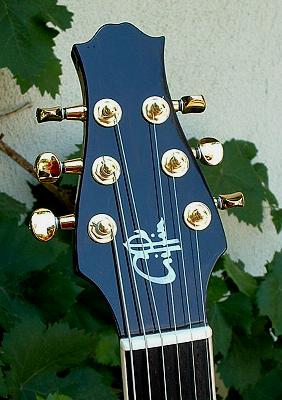

I used Lindy Fralin P90s just for a change. The gold Wilkinson bridge and Gotoh tuners go very well with the blue finish.

Basic model

Click on thumbnails for enlargements !!

Basic model

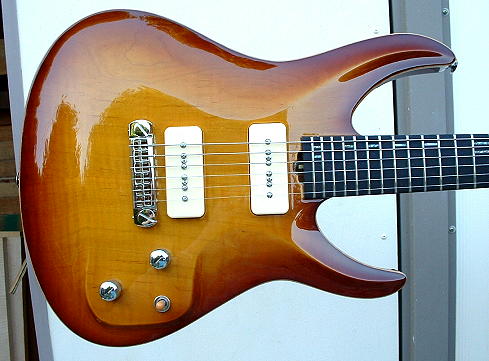

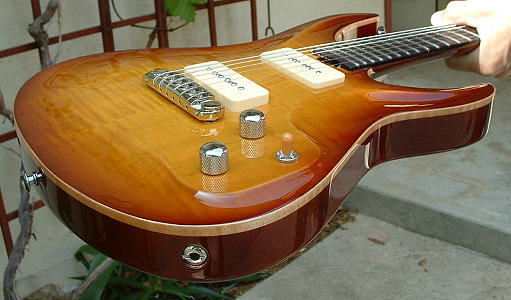

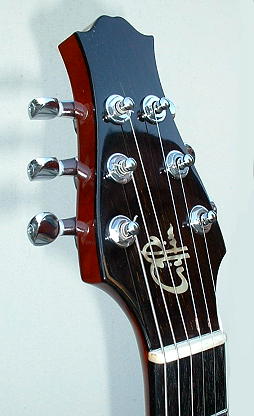

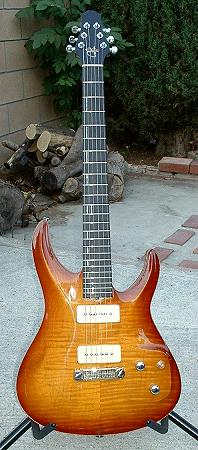

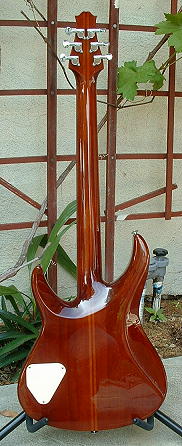

Macro-Cherry Sunburst

The main constructional difference between the Macro and the Standard apart from it's obvious difference in design, is that the Macro is a neck-thru and the Standard is a set-neck. This gives the guitar a slightly different sound character.

The Macro shown here is build with Honduras Mahogany and a curly Maple top. It has a dark Rosewood fingerboard. Pickups are Kent Armstrong P90s, and I've used a TonePros wraparound bridge. It's a comfortable and well-balanced instrument, and it sounds great!

Click on thumbnails
forenlargements !!

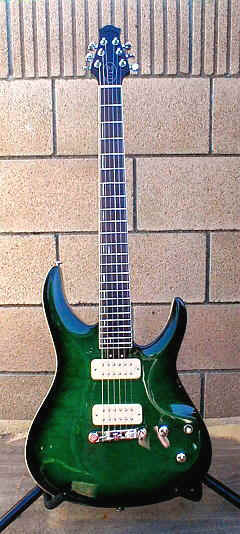

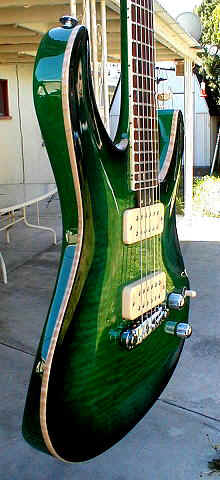

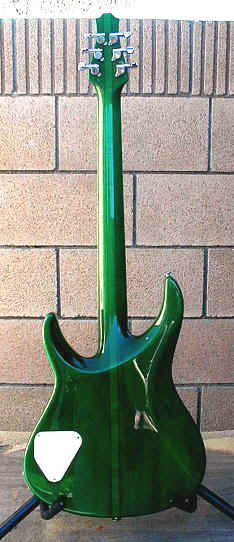

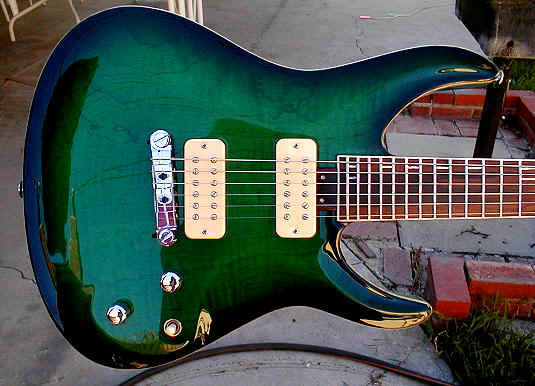

Macro - "Light"

Here is the super light-weight version of the Macro.

The idea for this instrument was to get maximum sound with minimum weight. I used Philippine Mahogany for the body and thru-neck, and a Western Maple for the top. The neck was strengthened with graphite reinforcements which also eliminates dead spots on the neck. The whole thing ended up weighing only 5 1/2 lbs!!

The tone and sustain are pretty amazing, and the DiMarzio virtual P90 pickups give it an extraordinary range of tone. The green sunburst finish is rather reminiscent of the old Burns guitars.

Click on thumbnails for enlargements !

Basic Model

	General specifications for most Macros: (Suggested dealer retail price, basic model, Macro: $3,850) Price for Custom order, basic model Macro: $3,950 (All instruments ordered directly from me are "custom orders" even if they fit within basic specs.) Any custom guitar ordered using parts and materials from this light blue box section should fall within the basic model price. Any custom option from the dark blue box below will add to the price by the amount shown. Materials used on a Macro (basic model): Wood: The Wood Pile *Body: Honduras Mahogany*, Black Walnut Neck: Laminated Honduras Mahogany or laminated Maple Body top: S (standard) Figured Maple (please check "The Wood Pile" for examples of available wood) Fingerboards: Indian Rosewood, South American Rosewood or Ebony Hardware: *Tuners: Gotoh 510 Delta series, Sperzel locking, Grover or Gotoh mini tuners*** Bridge: Wilkinson, TonePros, ABM or Pigtail Pickups: Amalfitano, Wolfetone, Lindy Fralin, Kent Armstrong, Razor, Gibson, Voodoo. Guitar controls: 1-volume, 1-tone (CTS or DiMarzio pots), 3-position pickup selector (Switchcraft). Neck dimensions: Scale Length: 24 3/4 inches, 24 fret neck Width at nut: 1 11/16 inches, width at 24th fret: 2 1/4 inches. Neck thickness at first fret: .890 inches to .910 inches. Thickness at 12th fret: .990 inches to 1.000 inches. General neck shape is based on a 50's Gibson which is a 'C' shape at the body end tapering down to a slight 'V' shape at the nut end. Neck/body joint: Neck blends into body with no heel Inlay options: Standard vertical lines, pearl dots
	*Additional options for Custom orders (upgrades):* *Body and neck wood: White Limba (Korina)* - Add $250, Black Limba - Add $150 Neck material: 5-ply Curly or Bird's Eye Maple - Add $100 Body top materials available: UG (upgrade) - UG+ (upgrade plus) Maple - curly, quilt or Bird's eye, Redwood burl, Redwood curl, Figured Walnut, Curly Bubinga, Curly Koa - Add $125 - $450 (please check "The Wood Pile" for examples of available wood) Optional Fingerboards: Madagascar Rosewood, Macassar Ebony - Add $50, Brazilian Rosewood - Add $300 Optional fingerboard inlays: Butterflies - Add $400, Teardrops - Add $100, Snowflakes - Add $75 Abalone Pearl binding: Guitar fully bound with multiple laminates and Abalone Pearl - Add $600 For Custom inlays - please call for quote. Other scale lengths available: None For any other custom details - please call or write for quote Hardware: For hardware options other than standard, please call for quote. (All instruments ordered directly from me are "custom orders" even if they fit within basic specs.)
