 T Deluxe

For specs. and prices see blue box below


   Here are some examples of the T Deluxe.  This guitar is available as either a drop-top or a flat-top with no contour.  On the flat-top version, the wood used for the top is about 1/4 inch to 3/8 inch thick (as opposed to 1/8 inch on the drop top).  This does make a difference to the overall tone of the instrument making it sound a little "closer" to a Standard.  Pickup and hardware choices are the same as those available for the Standard 6-strings and the other Giffin Ts as shown below in the spec. boxes.  There are endless possibilities for custom versions of the T Deluxe.


  T Deluxe, Gold top

Specifications:
Body:  Honduras Mahogany
Top:  Maple
Neck:  Honduras Mahogany / Maple
Fingerboard:  Rosewood
Scale length: 24 3/4 inches
Inlay:  Standard Pearl lines
Head Veneer:  Black Fiber
Hardware: Nickel
Bridge:  TonePros AVT2
Tuners:  Grover Rotomatics
Pickups:  Amalfitano P90s
Finish:  Gold top, Honey back

T Deluxe, Gold top - frontT Deluxe, Gold top - backT Deluxe, Gold top - body view1T Deluxe, Gold top - body view2 T Deluxe, Gold top - body view3


T Deluxe, Gold top

Click on thumbnails !

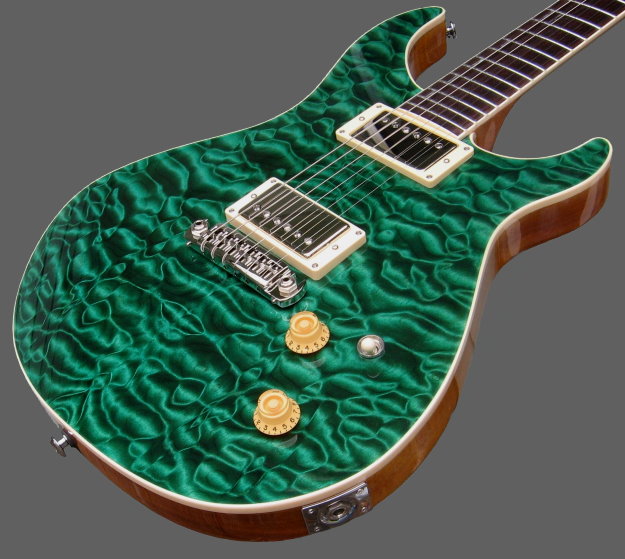

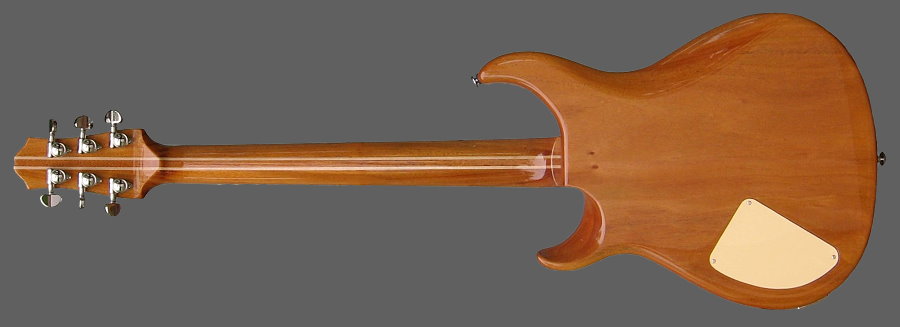

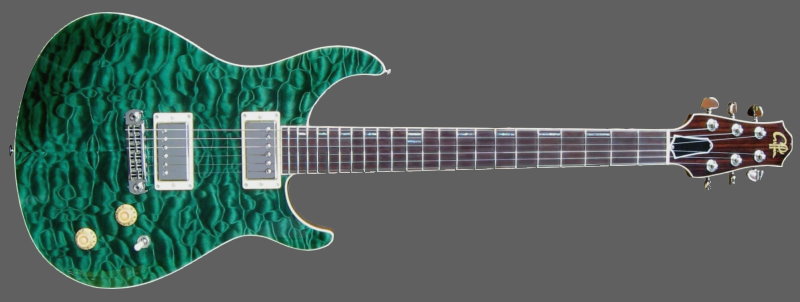

  T Deluxe, Emerald Green

Specifications:
Body:  Honduras Mahogany
Top:   Upgrade + Quilted Maple
Neck:  Honduras Mahogany / Maple
Fingerboard:  Rosewood
Scale length:  24 3/4 inches
Inlay:  Standard Pearl lines
Head Veneer:  Rosewood
Hardware: Nickel
Bridge:  TonePros AVT2
Tuners:  Grover
Pickups: Amalfitano Fullbuckers
Finish:  Emerald top, Natural back

T Deluxe, AAAA Quilted Maple top - frontT Deluxe, AAAA Quilted Maple top - backT Deluxe, AAAA Quilted Maple top - body view1T Deluxe, AAAA Quilted Maple top - body view2T Deluxe, AAAA Quilted Maplet top - body view3


T Deluxe, Emerald Green

Click on thumbnails !

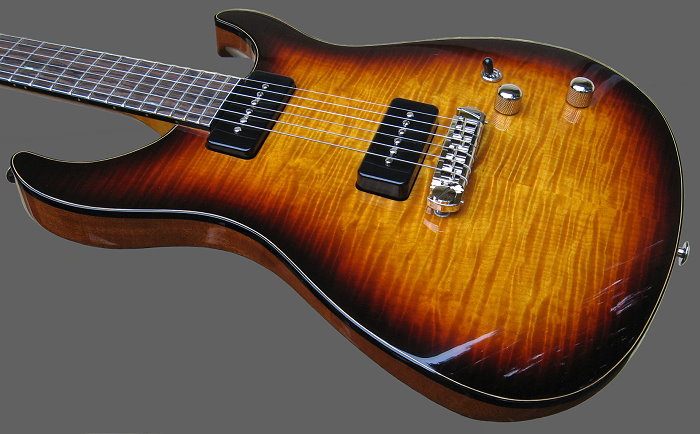

  T Deluxe, Sunburst Flame top

Specifications:
Body:  Honduras Mahogany
Top:   Flamed Maple
Neck: Honduras Mahogany / Maple
Fingerboard:  Rosewood
Scale length:  24 3/4 inches
Inlay:  Standard Pearl lines
Head Veneer:  Flamed Maple
Hardware: Nickel
Bridge:  TonePros AVT2
Tuners:  Grover
Pickups:  Amalfitano Fullbuckers
Finish:  Amber burst

T Deluxe, Amber burstT Deluxe, Amber burstT Deluxe, Amber burstT Deluxe, Amber burstT Deluxe, Amber burst


T Deluxe, Sunburst

Click on thumbnails !


  Other examples T Deluxe      For general specs. and prices see the blue box below


T Deluxe, Pelham blue

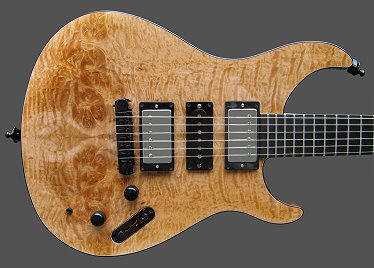

T Deluxe, Maple burl top

T Deluxe, Pelham blue
  T Deluxe, Maple burl top


T Deluxe, Natural finish

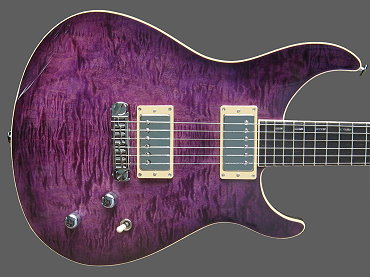

T Deluxe, Purple

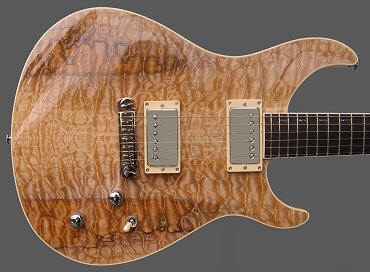

T Deluxe, Natural finish
  T Deluxe, Purple

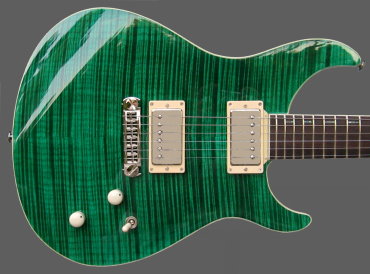

T Deluxe, Flamed top, Emerald Green

T Deluxe, Old Douglas Fir top

T Deluxe, Flamed Maple top, Emerald Green
  T Deluxe, Old Douglas Fir top.  This guitar is a flat-top


T Deluxe, Flame Maple, Red

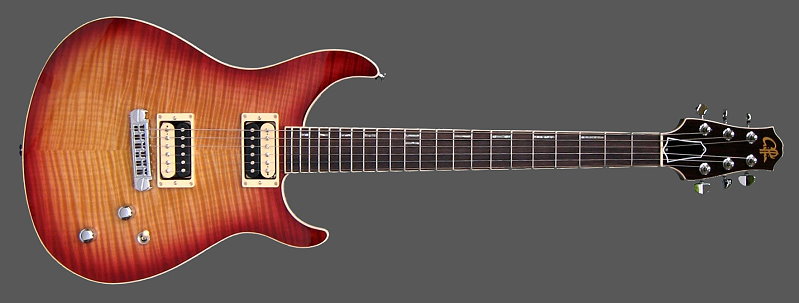

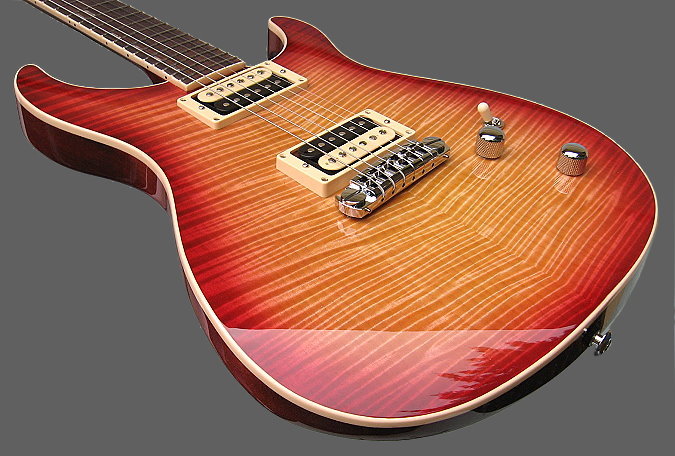

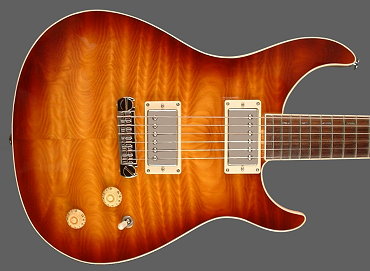

T Deluxe, Cherry Sun burst

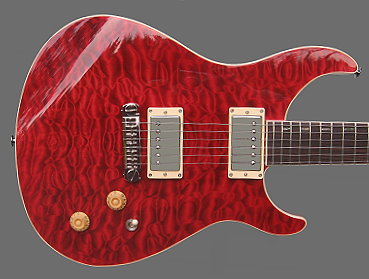

T Deluxe, Red flame
  T Deluxe, Cherry Sun burst






General specifications for Giffin T Deluxe:

Guitars using Mahogany body & neck:

 T2 Deluxe Drop-Top, ordered directly from Giffin Guitars: $2,950

T2 Deluxe Flat-Top, ordered directly from Giffin Guitars: $2,900

Guitars using Black Limba body & neck:

(Please note that Black Limba (body and neck wood) is now a $150 upgrade, due to increased difficulty to obtain suitable material.)


   (All instruments ordered directly from me are considered "custom orders" even if they fit within the basic model specs.)

Please contact my dealers for availability and retail price for already built Giffin guitars.

   Any custom guitar ordered using parts and materials from this light blue box section should fall within the basic model price, and will not add to the price.

Any custom option from the dark blue box below will add to the price by the amount shown.

Materials used for basic models:

Wood:                                                                                             The Wood  Pile
Body:  Philippine Mahogany, Honduras Mahogany, African Mahogany
Neck:  Laminated Honduras Mahogany
Top wood: (Drop-tops and Flat-tops only), Figured Maple  (please check "The Wood Pile" for  examples of available wood)
Fingerboards:  Indian Rosewood
Hardware:
Tuners:   Gotoh, Kluson or Grover
Bridge:  Wilkinson, TonePros, ABM or Pigtail
Pickups:  Humbuckers or P90s - Amalfitano, Kent Armstrong, Razor, Wolfetone, Gibson, Voodoo or Lindy Fralin
Guitar controls: 1-volume, 1-tone (CTS pots) Switchcraft selector on 2-pickup models

Neck dimensions:
Scale Length:  24 3/4 inches
Width at nut:  1 11/16 inches, width at 22nd fret:  2 1/4 inches.
Neck thickness at first fret:  .890 inches to .910 inches.  Thickness at 12th fret:  .990 inches to 1.000 inches.
General neck shape is based on a 50's Gibson  which is a 'C' shape at the body end tapering down to a slight
'V' shape at the nut end.
Neck/body joint:
  Neck joins body at 21st fret.  Heel is cut away to an unobtrusive but safe minimum.



Additional options for Custom orders:

Body and neck wood:  Black Limba - Add $150

Top Wood:  (For Drop-tops or Flat-tops only)
UG (upgrade)  and UG+ (upgrade plus) Maple - curly, quilt or Bird's eye, Redwood curl,  Figured Walnut, Curly Bubinga, Curly Koa - Add $125 - $450 - please call / e-mail for quote
(please check "The Wood Pile" for examples of available wood)


Optional Fingerboards:   For available fingerboard material and pricing, please call / e-mail.
Other scale lengths available:  25 1/2 inch

For any other custom details - please call / e-mail me for quote

Hardware:  For hardware options other than standard, please call / e-mail me for quote.
